Description
Frigidaire 24-inch front control dishwasher features automatic temperature control, 4 wash programs, 54 dBA sound level and can accommodate up to 14 place settings.
Features
ENERGY STAR CERTIFIED
Maximize your energy and dollar savings with ENERGY STAR Certified Appliances.
QUICK WASH
Washes a full load of dishes in a quarter of the time. Perfect for those times when you need clean dishes, quickly, but have a million other things to do.
Additional Features
TRIPLE THE CLEANING POWER
Give your dishes a more effective clean with the three spray arms, which achieve better water coverage during the cleaning cycle.
ENHANCED DRYING RESULTS WITH MAXDRY™
Get an enhanced dry with the MaxDry™ option, which raises the temperature and delivers better results reducing the need for towel drying.
SKIP PRE-RINSING WITH DISHSENSE® SENSOR TECHNOLOGY
Get better cleaning results with the sensor technology that adjusts cleaning performance based on the soil level of your dishes.
Specifications
General
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
14
Tub Material
Plastic
Silence Rating
54 dB
Cycle Information
Number of Cycles
4
Wash Cycles
• Energy Saver
• Heavy
• Normal
• Quick
• Heavy
• Normal
• Quick
Options
• Air Dry
• Dry - Heat
• Dry - Max
• Drying System: Static Vent
• Heated Dry
• High Temperature
• Start/Cancel
• Washing Temperature - High
• Washing Temperature - Sanitize
• Dry - Heat
• Dry - Max
• Drying System: Static Vent
• Heated Dry
• High Temperature
• Start/Cancel
• Washing Temperature - High
• Washing Temperature - Sanitize
Features
Technologies
• MaxDry™ option
• DishSense® Sensor Technology
• DishSense® Sensor Technology
Delay Start Information
Delay Start Hours: 4 Hours
Delay Start
Yes
Control Lock
Yes
Additional Information
• Automatic Temperature Control
• Detergent Dispenser
• Filter Material: Plastic
• Filter Trap: Removable
• Filtered Water: 100 %
• Hard Food Disposer or Filtration
• Motor Speeds: Single-Speed
• Rinse Aid Dispenser
• Smart Soil Sensor
• Lower Spray Arm: Bi-Beam
• Middle Spray Arm: Bi-Beam
• Upper Spray Arm: Spray Arm
• Tub Color: Midnight Ink
• Tub Design: Tall Tub
• Wash Levels: 5
• Wash System: Direct Feed
• Water Pressure: 120 psi
• Water Usage: 3.2 Gallons
• Lower Rack: Maximum Height Clearance: 13"
• Lower Rack: Minimum Height Clearance: 11"
• Lower Rack: Number of Silverware Basket: 1
• Lower Rack: Number of Silverware Basket Lids: 2
• Lower Rack Coating: PVC
• Lower Rack Type: Standard
• Upper Rack: Minimum Height Clearance: 8"
• Upper Rack Coating: PVC
• Upper Rack Spacer: Yes
• Upper Rack Type: Standard
• Prop 65 Label

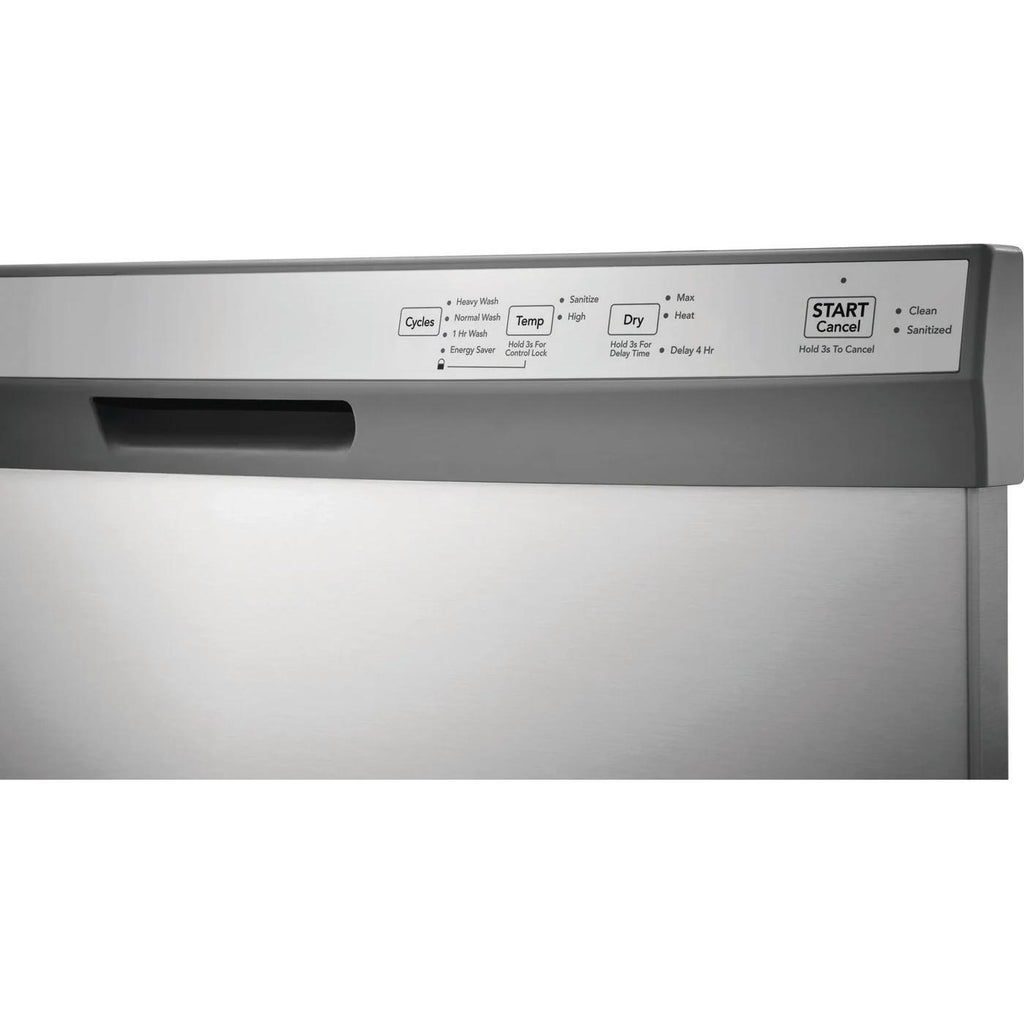

• Control Location: Front
• Rinse Aid Indicator
• Door and Handle Design: Pocket
• Door Latch: Pull
• Door Type: Standard
• Connection Location: Right Bottom
• Number of Leveling Legs: 4
• Water Inlet Location: Left Bottom Front
• Detergent Dispenser
• Filter Material: Plastic
• Filter Trap: Removable
• Filtered Water: 100 %
• Hard Food Disposer or Filtration
• Motor Speeds: Single-Speed
• Rinse Aid Dispenser
• Smart Soil Sensor
• Lower Spray Arm: Bi-Beam
• Middle Spray Arm: Bi-Beam
• Upper Spray Arm: Spray Arm
• Tub Color: Midnight Ink
• Tub Design: Tall Tub
• Wash Levels: 5
• Wash System: Direct Feed
• Water Pressure: 120 psi
• Water Usage: 3.2 Gallons
• Lower Rack: Maximum Height Clearance: 13"
• Lower Rack: Minimum Height Clearance: 11"
• Lower Rack: Number of Silverware Basket: 1
• Lower Rack: Number of Silverware Basket Lids: 2
• Lower Rack Coating: PVC
• Lower Rack Type: Standard
• Upper Rack: Minimum Height Clearance: 8"
• Upper Rack Coating: PVC
• Upper Rack Spacer: Yes
• Upper Rack Type: Standard
• Prop 65 Label
• Control Location: Front
• Rinse Aid Indicator
• Door and Handle Design: Pocket
• Door Latch: Pull
• Door Type: Standard
• Connection Location: Right Bottom
• Number of Leveling Legs: 4
• Water Inlet Location: Left Bottom Front
Electrical Information
Information
• Annual Energy: 240 kWh
• Amps @ 120 Volts: 10 Amps
• Connected Load @ 120V: 1.2 kW
• Voltage Rating: 120 V
• Amps @ 120 Volts: 10 Amps
• Connected Load @ 120V: 1.2 kW
• Voltage Rating: 120 V
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
UL Listed
Yes
Information
• CEE Tier: Tier 1
• cUL Listed
• Meets ASSE 1006 Requirements
• cUL Listed
• Meets ASSE 1006 Requirements
Dimensions
Class Width
24"
Width
24 inch(es) / 60.96 cm
Height (Min.)
33.5 inch(es) / 85.09 cm
Depth (Without Handle)
25 inch(es) / 63.5 cm
Weight
56 lb(s) / 25.4 kg
Additional Dimensions
• Depth With Door Open: 49 1/4"
• Minimum Height: 33 1/2"
• Minimum Height: 33 1/2"
Warranty
Warranty
• Warranty - Labor: 1 Year
• Warranty - Parts: 1 Year
• Warranty - Parts: 1 Year
UPC
UPC#
12505116162
