Description

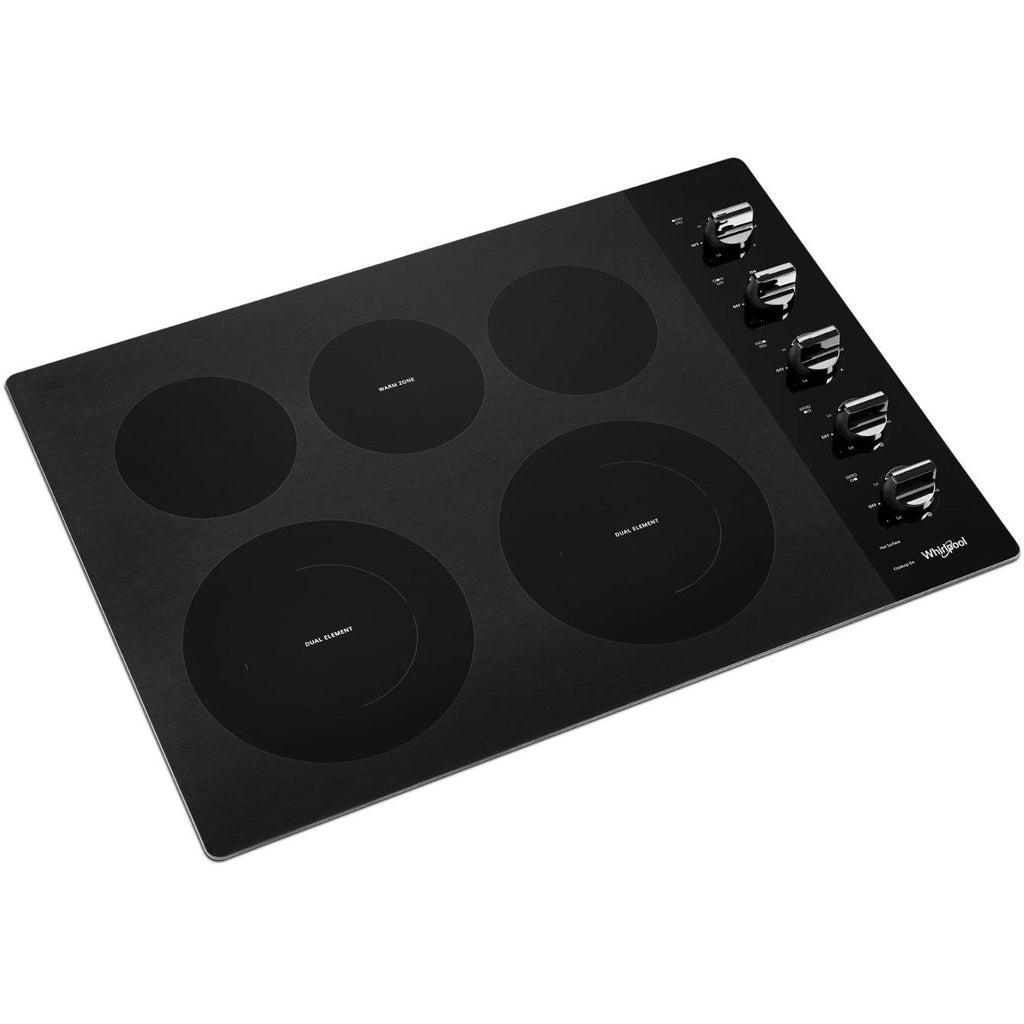

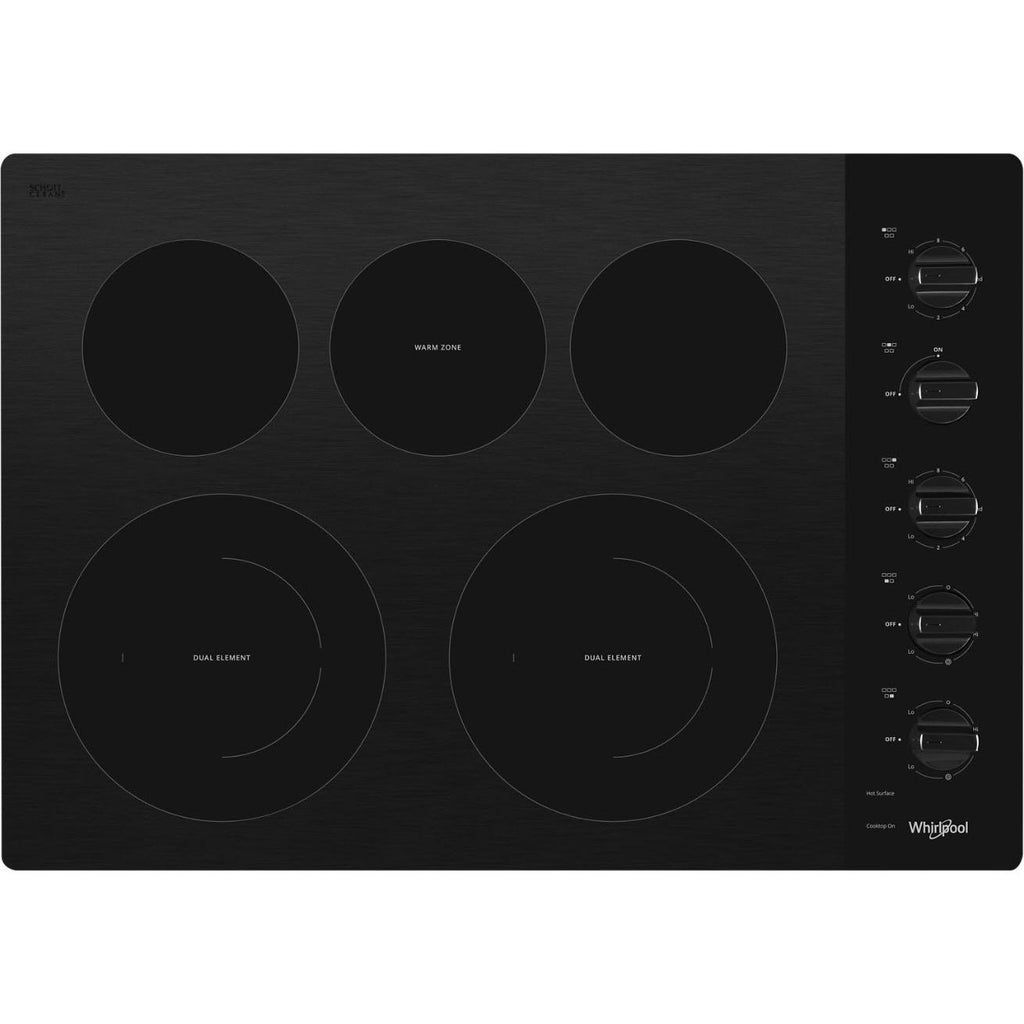

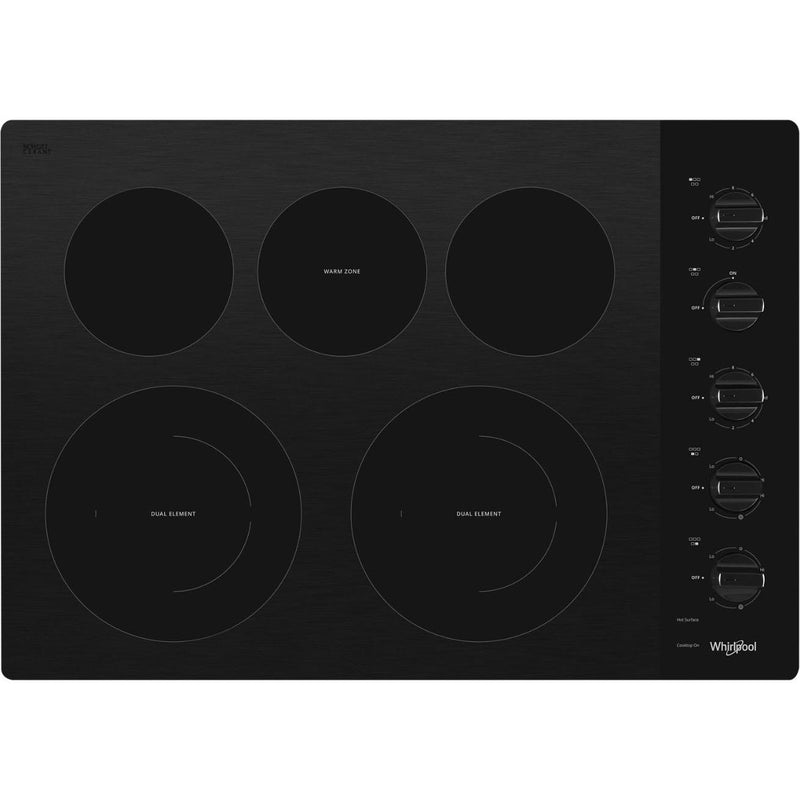

Cook all your family’s favorites at once and clean up quick with a 5-burner cooktop designed to make the most of your mealtime routine. Two FlexHeat™ Dual Radiant Elements give you more flexibility and the Warm Zone Element keeps food warm while you’re finishing the rest of the meal. Then, easily wipe messes off the ceramic glass surface.
Features
FLEXHEAT™ DUAL RADIANT ELEMENT
Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 10" expandable outer ring that makes room for larger cookware.
EASY-WIPE CERAMIC GLASS COOKTOP
The ceramic glass cooktop provides an ideal space for cooking and easy cleanup.
WARM ZONE ELEMENT
Keep food warm while you're finishing the rest of the meal using this low-powered element.

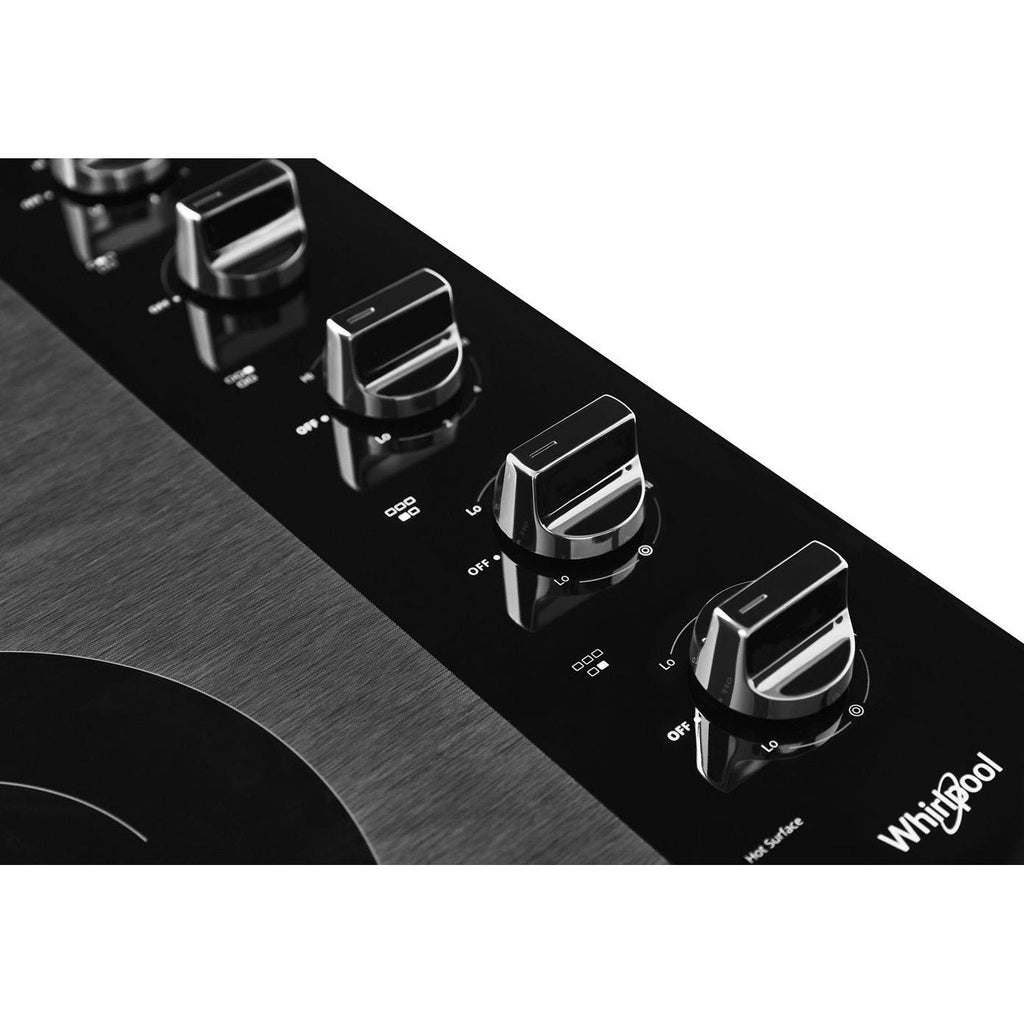

DISHWASHER-SAFE KNOBS
Whirlpool's cooktops feature easy-to-clean knobs that are dishwasher-safe to keep your cooktop looking like new.
HOT SURFACE INDICATOR LIGHT
A hot surface indicator light illuminates when the cooktop surface is still hot to the touch even after the heating element has been turned off.
WALL OVEN COMPATIBLE
Install this cooktop to work with a wall oven or on its own for added flexibility.
Specifications
General
Color
Black
Manufacturer Color
Black
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Left front: 3000W/1900W
• Left rear: 1200W
• Center rear: 100W
• Right front: 3000W/1900W
• Right rear: 1200W
• Left rear: 1200W
• Center rear: 100W
• Right front: 3000W/1900W
• Right rear: 1200W
Burner/Element Size
• Left rear: 6"
• Right rear: 6"
• Center rear: 6" (Warming)
• Left front: 6" / 10" (Dual)
• Right front: 6" / 10" (Dual)
• Right rear: 6"
• Center rear: 6" (Warming)
• Left front: 6" / 10" (Dual)
• Right front: 6" / 10" (Dual)
Elements
Smoothtop
Surface Features
Easy-Wipe ceramic glass cooktop
Features
Technologies
FlexHeat™ dual radiant element
Additional Information
• Infinite heat controls
• Heating element on indicator light
• Hot surface indicator light
• Warm zone element
• Dishwasher-safe knobs
• Wall oven compatible: can be installed over built-in oven
• Heating element on indicator light
• Hot surface indicator light
• Warm zone element
• Dishwasher-safe knobs
• Wall oven compatible: can be installed over built-in oven
Electrical Information
Information
• 208/240 V
• 40 A
• 60 Hz
• 40 A
• 60 Hz
Certifications and Approvals
ADA Compliant
Yes
Accessories
Optional
Power cord not included
Dimensions
Class Width
30"
Width
30.81 inch(es) / 78.26 cm
Height
5.25 inch(es) / 13.34 cm
Depth
21.75 inch(es) / 55.25 cm
Weight
41.01 lb(s) / 18.6 kg
Additional Dimensions
• Cutout Depth: 20-3/8"
• Cutout Width: 29-1/16"
• Cutout Width: 29-1/16"
Shipping Dimensions
Width
35 inch(es) / 88.9 cm
Height
9.25 inch(es) / 23.5 cm
Depth
25 inch(es) / 63.5 cm
Weight
46.01 lb(s) / 20.87 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
883049472706
