Description

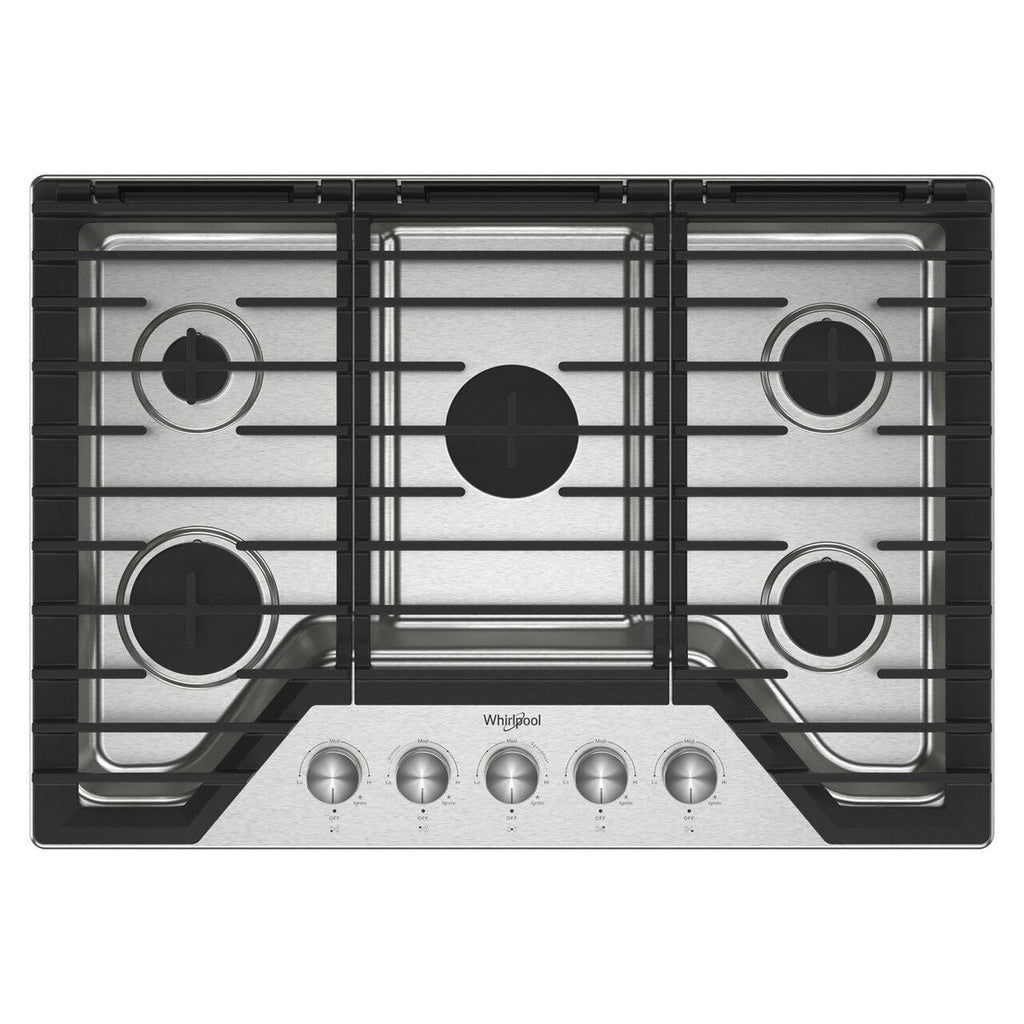

Get dinner on the table fast thanks to a Fifth Burner for greater Cooking Flexibility. This 5-burner gas cooktop includes a SpeedHeat™ Burner for a quick boil and a 5K BTU Simmer Burner for low, even heat. Then cleanup is quick and easy with the EZ-2-Lift™ Hinged Cast-Iron Grates.
Features
SPEEDHEAT™ BURNER
Get a rapid boil and perfect sear quickly with the SpeedHeat™ Burner, which generates high heat to get dinner to the table fast.
COOKING FLEXIBILITY.
Navigate busy mealtimes with various burner sizes and a range of power levels, so you can simmer your sauce while you sear your steaks to maximize time in the kitchen.
EZ-2-LIFT™ HINGED CAST-IRON GRATES
The industry-exclusive EZ-2-Lift™ hinged cast-iron grates lift effortlessly to make cleaning the cooktop simple.
5K BTU SIMMER BURNER
Easily maintain low, even heat to simmer your sauces, warm up leftovers or melt chocolate with the 5K BTU Simmer Burner.
9.1K–12K BTU MULTI-PURPOSE BURNERS
Get a variety of heating power with your multi-purpose burners. The 9.1K BTU burner gives medium heat for daily cooking while the 12K BTU burner gives quick, high heat for searing.
DISHWASHER-SAFE CAST-IRON GRATES.
Wash these cast-iron grates right in the dishwasher when they get messy, thanks to a dishwasher-safe finish that makes them easy to clean.
DISHWASHER-SAFE KNOBS
Whirlpool's cooktops feature easy-to-clean knobs that are dishwasher-safe to keep your cooktop looking like new.
UPSWEPT SPILLGUARD™ COOKTOP
Clean up faster with a cooktop that has raised edges to help contain spills.
EDGE-TO-EDGE CAST-IRON GRATES.
Maximize your space to sauté, boil and simmer with cast-iron grates that extend across the entire cooktop, giving you the flexibility to move pots and pans anywhere.
WALL OVEN COMPATIBLE
Install this cooktop to work with a wall oven or on its own for added flexibility.
ADA COMPLIANT
This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Right Rear Burner Power: 9,100 BTU
• Center Burner Power: 18,000 BTU
• Left Rear Burner Power: 5,000 BTU
• Right Front Burner Power: 9,100 BTU
• Left Front Burner Power: 12,000 BTU
• Center Burner Power: 18,000 BTU
• Left Rear Burner Power: 5,000 BTU
• Right Front Burner Power: 9,100 BTU
• Left Front Burner Power: 12,000 BTU
Burners
Sealed
Features
Technologies
• SpeedHeat™ Burner
• EZ-2-Lift™ Hinged Cast-Iron Grates
• EZ-2-Lift™ Hinged Cast-Iron Grates
Additional Information
• Power Outage Compatible
• Installs Over Built In Oven
• Installs Over Built In Oven
Electrical Information
Information
15 A, 60 Hz
Certifications and Approvals
ADA Compliant
Yes
Information
UL
Accessories
Included
LP Convertible
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
5.13 inch(es) / 13.02 cm
Depth
21 inch(es) / 53.34 cm
Weight
60.1 lb(s) / 27.26 kg
Additional Dimensions
• Maximum Height: 5.13"
• Minimum Height: 4.75"
• Minimum Height: 4.75"
Shipping Dimensions
Width
34.69 inch(es) / 88.11 cm
Height
13 inch(es) / 33.02 cm
Depth
25 inch(es) / 63.5 cm
UPC
UPC#
883049678245
